Vacuum Loaders
Feedmax S3 net
Single Material Loader
Optimized single loader for flexible conveying of smaller material volumes of up to 80 kg/h in permanent operation. Peak performance of up to 250 kg/h.
Feedmax S3 net Features
Robust stainless steel construction – All components in contact with material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications.
Polyester filter with blow-back cleaning to achieve a longer lifetime a polyester filter was used. The cloth-like filter surface is ensuring that any intake and accumulation of dust particles is made impossible. This filter is never losing its shape, and it is held in position during the entire conveying cycle, ensuring an absolutely unproblematic buildup of vacuum.
Advantages of Feedmax B Series Loaders
Wand – Included in the standard package is a 780 mm long wand with air vents for the adjustment of the material load, as well as a 5 m PVC hose.
AmbiLED – Light signal in different colors at the hinged lid for the visualization of internal operating conditions.
Granulator operating mode – Adjustable timer function for the emptying of a granulator regrind bin.
Teachbox basic – Optional teach pendant for remote access when the loader is mounted on blenders or tall machine hoppers. Via the touch display, the control of up to 24 material loaders is possible.
Proportional valve (optional) for the conveying of two components is externally attached to the material inlet. The dosing relation can be set easily via a Potentiometer.
Feedmax basic/plus
Central Material Loaders
These units combine the advantages of a single loader with those of central material loaders.
Material contacting components made of stainless steel
Vacuum connection with sealing surface
Hinged lid with integrated screen
Inlet with proper wall thickness, special steel precision casting
AmbiLED status Display
Feedmax basic: A practical, newly designed appliance with the appearance of a single loader, and it has to be combined with high-performance blowers, so that it can reach a higher material throughput and handle material conveyance over longer distances.
Feedmax plus: Based on the central loaders with pneumatic discharge shut-off valves, the Feedmax plus offers the possibility of controlling up to 24 devices using the Teachbox basic touch-screen remote control – even in combination with Feedmax basic.

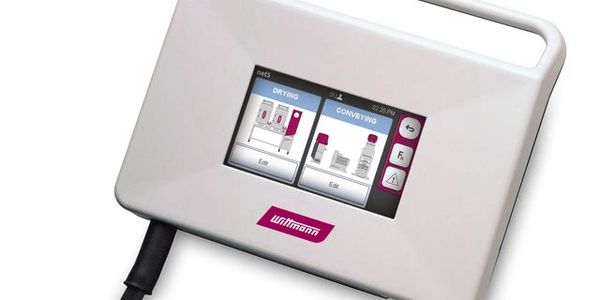

Teachbox basic
Net5 system – Teachbox basic: The graphical surface of the Teachbox basic allows for the control of up to 24 conveying stations, up to two vacuum circuits. Beyond that, the control of filter stations and suction valves is possible. Linked units are identified automatically. These units are displayed on a highres 4.7" touch-screen: for simple operator guidance and process parameter Display.
Clearly Arranged Screen View: Clear graphical display of units, including status display
Versatile Setting Possibilities: Easy change of settings for conveying and vacuum (depending on the preset user rights)
Display and Administration of: up to 24 Feedmax S3 net | up to 24 Feedmax basic or Feedmax plus | up to 2 vacuum lines and 1 back-up blower
