Founded in 1954, Crizaf is a family-run business that reached its third generation. Organizational flexibility, product customization and quality are the principles that inspire its operations. Crizaf believes in collaboration and synergy with the client to resolve issues faster and better and meet the customer’s needs. The company has three manufacturing sites
in Italy, Brazil, and India and has an extensive distribution network in all continents. Crizaf is registered at Amaplast, the national association of plastics and rubber machinery and mould manufacturers.
1000 series - Conveyors with PU/PVC belt
New range of conveyors with PU/PVC belt. The new conveyors offer a real solution to new demands from the current market.
C1100 - Linear Conveyor
Standard technical specifications
Dimensions: PO: from 500mm / to 7000mm (50mm increments) | UT: from 190mm / to 790mm (50mm increments) | Frame: anodized extruded aluminum profile | die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile | Stand support: die cast aluminum alloy clamps | zinc plated steel legs | levelling elements | Belt: RAL 5002 matte blue PU | max temperature resistance 100°C in continuous | Drive: direct (left side) | 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 3,2 m/min | Control: Start - Stop
C1200 - Incline conveyor
Standard technical specifications
Dimensions: PO: from 500mm / to 7000mm (50mm increments) | UT: from 190mm / to 790mm (50mm increments) | Frame: anodised extruded aluminium profile | die cast aluminium alloy head supports | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy clamps | zinc plated steel legs | castors with brakes | Belt: petrol green quadrangular pattern PVC | max temperature resistance 80°C in continuous
Drive: direct (left side) | 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 3,2 m/min | Control: Start - Stop
C1300 - Incline/top conveyor
Standard technical specifications
Dimensions: PO: from 450mm / to 3500mm (50mm increments) | PI: from 1000mm / to 3500mm (50mm increments) | UT: from 190mm / to 640mm (50mm increments) | Frame: anodised extruded aluminium profile
die cast aluminium | alloy head supports | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy hinges and clamps
zinc plated steel legs | castors with brake |Belt: black thin wave pattern PVC | max temperature resistance 80°C in continuous | Drive: direct (left side) | 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 3,2 m/min | Control: Start - Stop
C1400 - Horizontal/incline conveyor
Standard technical specifications
Dimensions: PO: from 500mm / to 3500mm (50mm increments)
PI: from 800mm / to 3500mm (50mm increments) | UT: from 190mm / to 640mm (50mm increments) | Frame: anodised extruded aluminium profile | die cast aluminium alloy | head supports and hinges | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy hinges and clamps | zinc plated steel legs | castors with brakes |Belt: RAL 5002 matte blue PU | PU cleats | max temperature resistance 100°C in continuous
Drive: direct (left side) | 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 3,2 m/min | Control: Start - Stop
C1500 - Horizontal/incline/top conveyor
Standard technical specifications
Dimensions: PO: from 500mm / to 3500mm (50mm increments); PI: from 800mm / to 3500mm (50mm increments); PZ: from 400mm / to 1500mm (50mm increments); UT: from 190mm / to 640mm (50mm increments) | Frame: anodised extruded aluminium profile; die cast aluminium alloy head supports and hinges | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy hinges and clamps | zinc plated steel legs | castors with brakes |Belt: RAL 5002 matte blue PU | PU cleats | max temperature resistance 100°C in continuous
Drive: direct (left side) | 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 3,2 m/min | Control: Start - Stop
W1100 / W1200 - Linear / Incline conveyor - Heavy duty frame
Heavy-duty frame conveyors with PU/PVC belt.
Standard technical specifications
Dimensions: PO: from 3000mm / to 10000mm (50mm increments); UT: from 500mm / to 1500mm (50mm increments) | Frame: anodised extruded aluminium profile; RAL 9005 black painted steel head supports | Sidewalls: anodised extruded aluminium profile | Stand support: RAL 9005 black painted steel hinges and clamps; zinc plated steel legs; castors with brakes / levelling elements | Belt: dark green PU; PU cleats (only model C1250); max temperature resistance 80°C in continuous | Drive: chain (left side); 3 Phase – 400Vac/50Hz – 0.25kW – asynchronous motor | Speed: 4,1 m/min | Control: Start - Stop
2000 series - Conveyors with PP/PA modular plastic belt

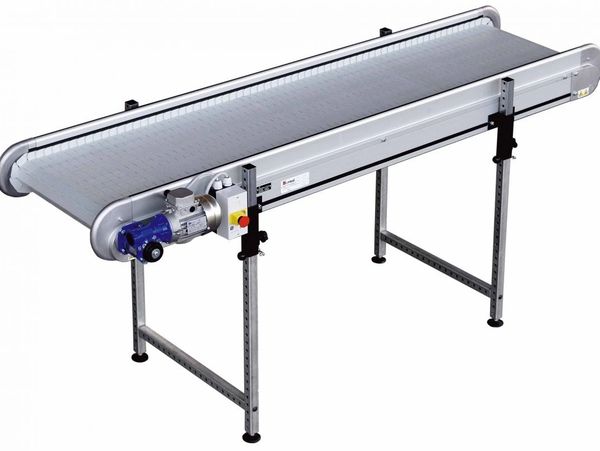

P2100 - Linear conveyor belt
Standard technical specifications
Dimensions: PO: from 1000mm / to 7000mm (50mm increments); UT: from 200mm / to 800mm (50mm increments) | Frame: anodised extruded aluminium profile; die cast aluminium alloy head supports | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy clamps; zinc plated steel legs; levelling elements | Belt: RAL 7035 grey embossed PP surface; integrated sidewalls; max temperature resistance 125°C in continuous | Drive: direct (left side); 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 4,0 m/min | Control: Start - Stop

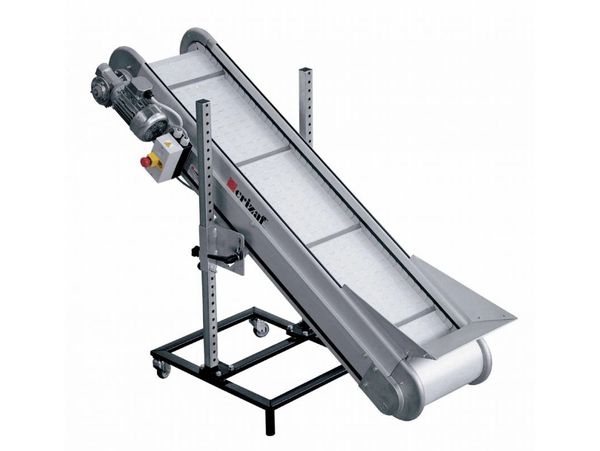

P2200 - Incline conveyor
Standard technical specifications
Dimensions: PO: from 1000mm / to 7000mm (50mm increments); UT: from 200mm / to 800mm (189 mm increments) | Frame: anodised extruded aluminium profile; die cast aluminium alloy head supports | Sidewalls: anodised extruded aluminium profile | Stand support: die cast aluminium alloy clamps; zinc plated steel legs; castors with brakes | Belt: RAL 7035 grey embossed PP surface; integrated sidewalls; max temperature resistance 125°C in continuous | Drive: direct (left side); 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 4,0 m/min | Control: Start - Stop

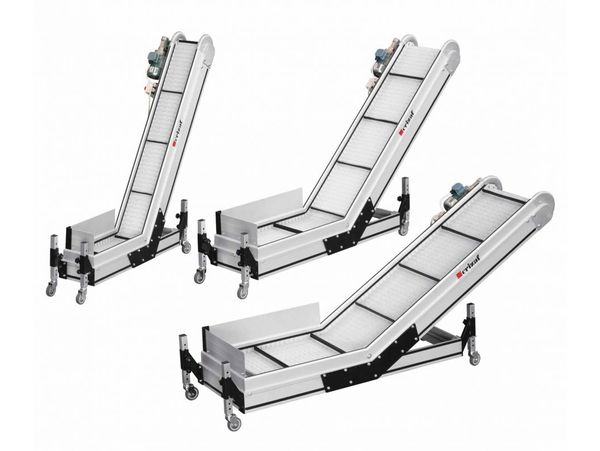

P2300 - Top/incline conveyor
Standard technical specifications
Dimensions: from 6 pitch* (PO 500mm + PI 650mm); to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm); UT: from 200mm / to 800mm (50 mm increments); *1pitch=378mm | Frame: anodised extruded aluminium profile; die cast aluminium alloy head supports; zinc plated steel join supports; available fixed incline 30° - 45° - 60° | zinc plated steel hinges and clamps; zinc plated steel legs; castors with brakes | Belt: RAL 7035 grey embossed PP surface; integrated sidewalls; max temperature resistance 125°C in continuous; RAL 9005 black PU cleats | Drive: direct (left side); 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 4,0 m/min | Control: Start - Stop
P2400 - Horizontal/incline conveyor
Standard technical specifications
Dimensions: from 6 pitch* (PO 500mm + PI 650mm); to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm); UT: from 200mm / to 800mm (50 mm increments); *1pitch=378mm | anodised extruded aluminium profile; die cast aluminium alloy head supports; zinc plated steel join supports; available fixed incline 30° - 45° - 60° | Sidewalls: anodised extruded aluminium profile; Stand support: RAL 9005 black painted clamps; zinc plated steel legs; castors | RAL 7035 grey embossed PP surface; integrated sidewalls; max temperature resistance 125°C in continuous; RAL 9005 black PU cleats | Drive: direct (left side); 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 4,0 m/min | Control: Start - Stop

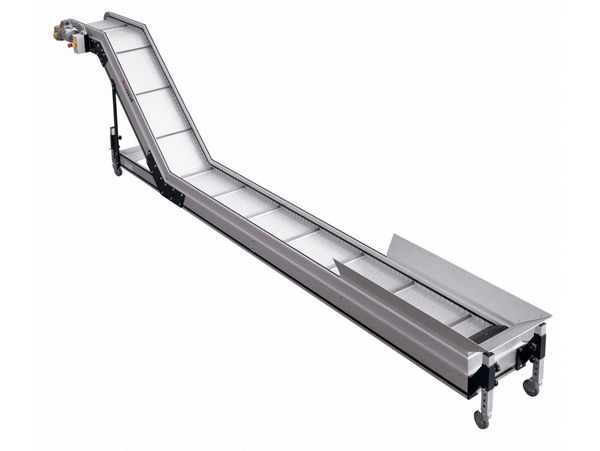

P2500 - horizontal/inclined/top conveyor
Standard technical specifications
Dimensions: from 9 pitch* (PO 500mm + PI 750mm + PZ 500mm); to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm); UT: from 200mm / to 800mm (50 mm increments); *1pitch=378mm | Frame: anodised extruded aluminium profile; die cast aluminium alloy head supports; zinc plated steel join supports; available fixed incline 30° - 45° - 60° | Sidewalls: anodised extruded aluminium profile | Stand support: RAL 9005 black painted clamps; zinc plated steel legs; castors | Belt: RAL 7035 grey embossed PP surface; integrated sidewalls; max temperature resistance 125°C in continuous | Drive: direct (left side); 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor | Speed: 4,0 m/min | Control: Start - Stop

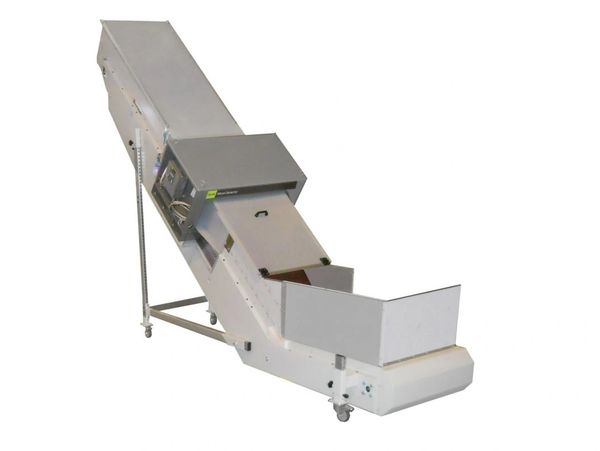

M2400 - Horizontal/incline conveyors with modular plastic belt and painted steel frame
Standard technical specifications
Dimensions: depends on the application | Frame: 2mm thick painted steel; fixed incline | Sidewalls: painted steel integrated with the frame; additional stainless steel sidewalls | Stand support: painted steel clamps; zinc plated steel legs; castors with brakes | Belt: PP wide range of solutions | Drive: direct (left side); 3 Phase – 400Vac/50Hz – asynchronous motor | Speed: 6,0 m/min | Control: Start - Stop
3000 series Linear and multi-level filling and storage systems

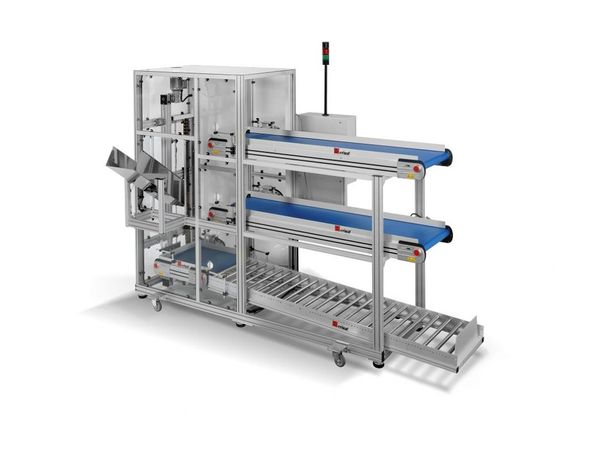

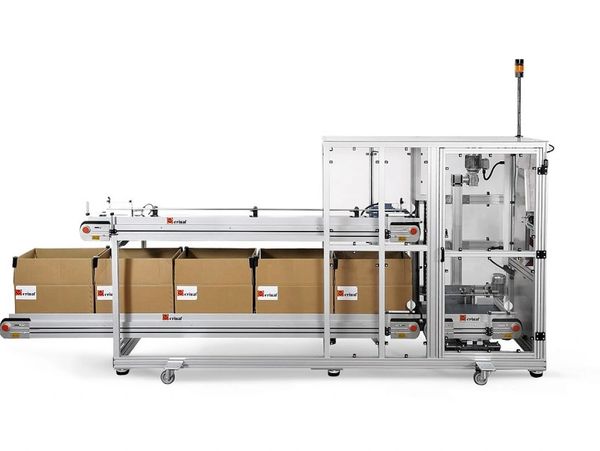

F3100 - Multi level system
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,4 m/min, 6,8 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: Touch Screen
F3110 - Multi level system with scale
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,4 m/min, 6,8 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: Touch Screen
F3200 - Linear system
Linear filling and storage system made up from a linear conveyor C1100 and a gravitational roller conveyor N1100.
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,2 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: TC130

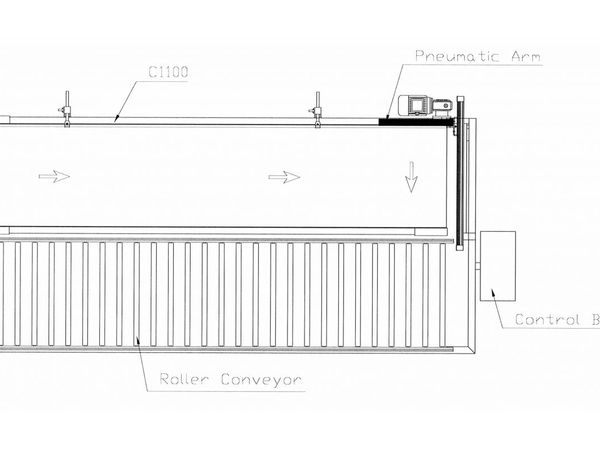

F3300 - Parallel
Linear filling and storage system made up from a linear conveyor C1100 and a gravitational roller conveyor N1100.
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,2 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: TC130

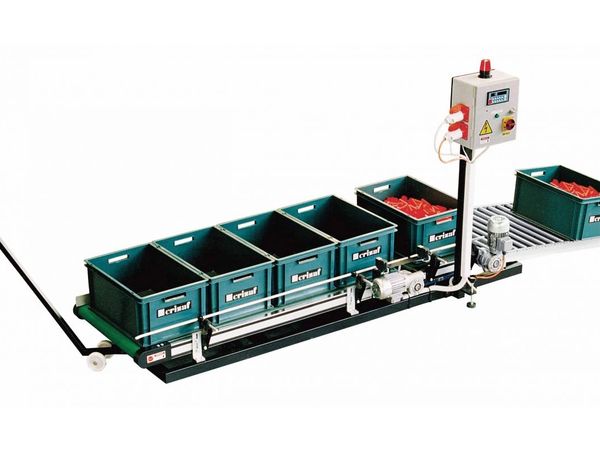

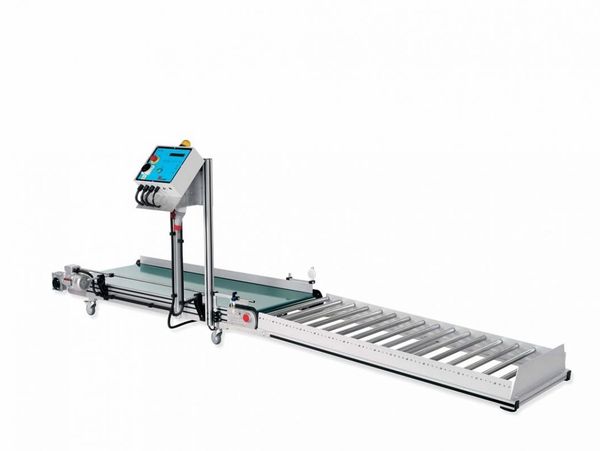

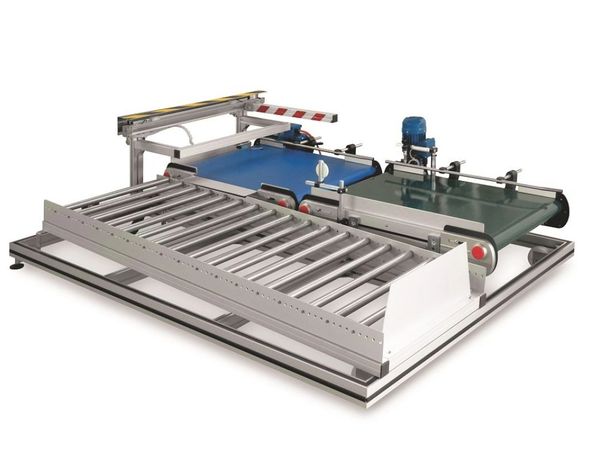

F3210 - Linear with weighing system
Linear filling and storage system with weighing station made up from a linear conveyor C1100, a weighing station and a gravitational roller conveyor N1100.
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,2 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: Special
F3310 - Parallel with weighing system
Parallel filling and storage system with weighing station made up from a linear conveyor C1100, a weighing station and a gravitational roller conveyor N1100.
Standard technical specifications
Conveyor frame: anodized extruded aluminum profile; die cast aluminum alloy head supports | Sidewalls: anodized extruded aluminum profile; 1 stainless steel adjustable sidewall | Stand support: castors with brakes; Belt: green PVC; max temperature resistance 80°C | Drive: direct (right side); 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor | Speed: 3,2 m/min | Sensor: photocell/refracting to detect the box in the filling position and box presence | Roller conveyor frame: anodized extruded aluminum profile; extruded aluminum profile rollers supports; extruded aluminum profile box stop | Control: Special

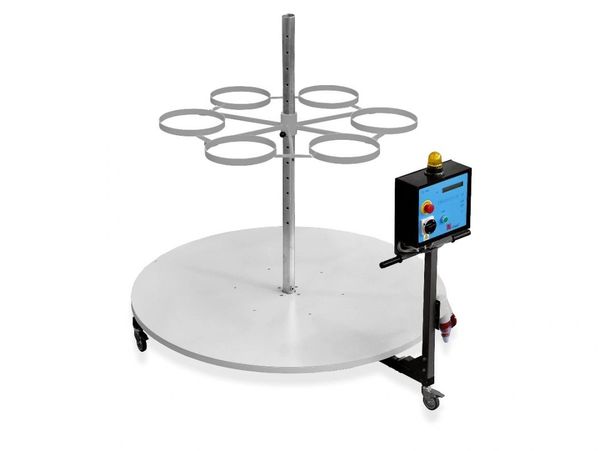

F35xx / F36xx - Carousel for boxes
Rotating filling and storage systems (for boxes).
Standard technical specifications
Conveyor frame:RAL7032 grey painted steel cross/control box
RAL7035 grey painted steel rotating platform | Stand support: castors with brakes; Ø rotating platform: 800mm - 1000mm - 1200mm - 1500mm - 2000mm | No. box positions: 2 - 3 - 4 - 6 - 8 - 12 - 24 | Drive: direct 3Ph - 400Vac - 50Hz - 0,18Kw or 0,25kW asynchronous motor | Control: TC130

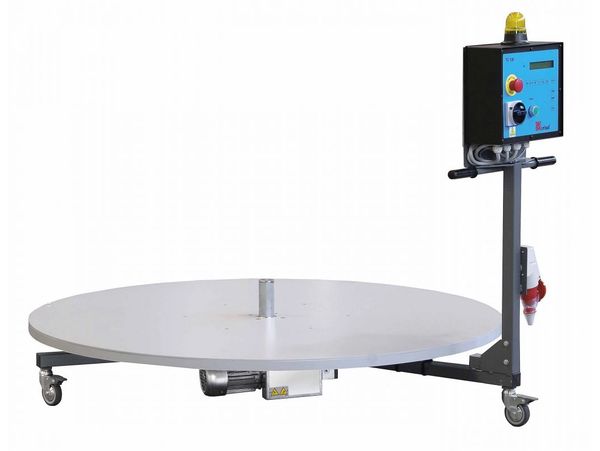

F37xx / F38xx - Carousel for boxes
Rotating filling and storage systems (for boxes).
Standard technical specifications
Conveyor frame:RAL7032 grey painted steel cross/control box
RAL7035 grey painted steel rotating platform | Stand support: castors with brakes; Ø rotating platform: 800mm - 1000mm - 1200mm - 1500mm - 2000mm | No. box positions: 2 - 3 - 4 - 6 - 8 - 12 - 24 | Drive: direct 3Ph - 400Vac - 50Hz - 0,18Kw or 0,25kW asynchronous motor | Control: TC130
F3900 / F3910 - Longitudinal carousel for boxes / bags

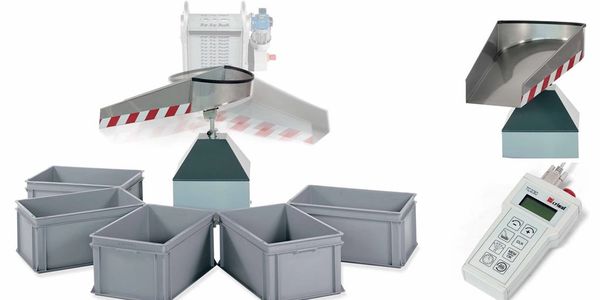

F3950 - Rotating chute
4000 series - Drum separators / Rollers separators

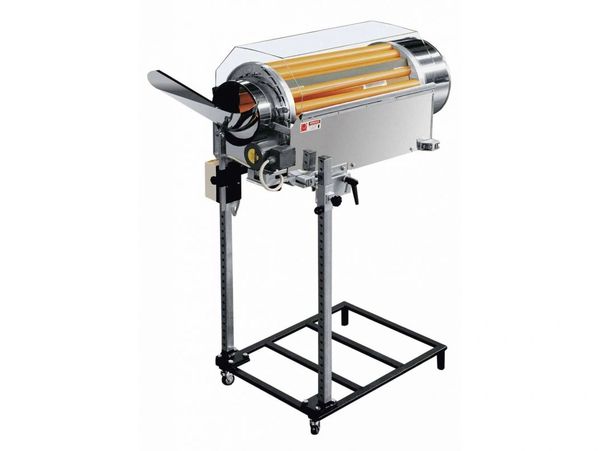

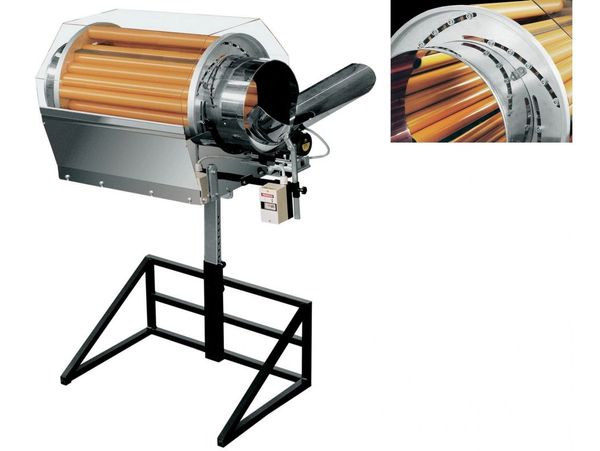

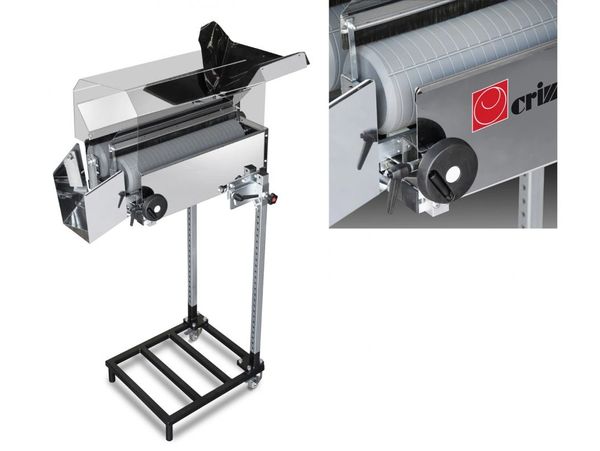

S41xx - Rotating drum separator with rollers adjustment by single screw
Drum separator with quick and precise rollers adjustment.

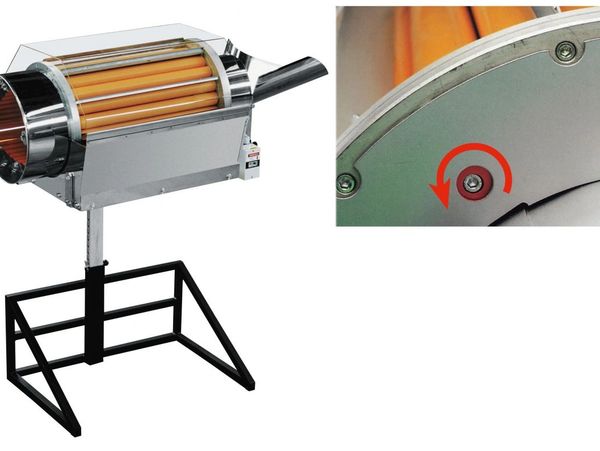

S42xx - Rotating drum separator with single rollers adjustment
Drum separator with single rollers adjustment.
S43xx- Rotating drum separator with single rollers adjustment
Separator with reduced diameter rotating drum and single rollers adjustment.

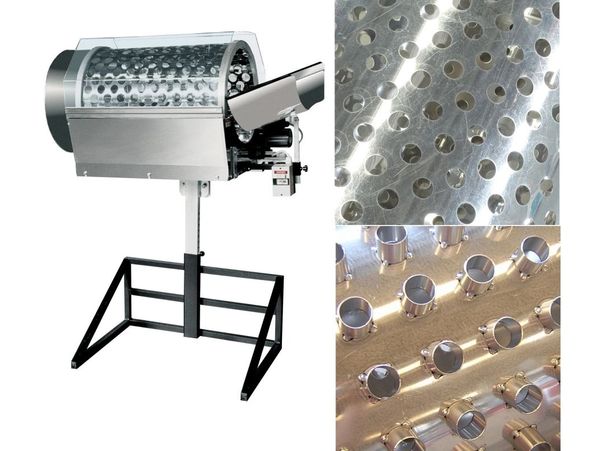

S44xx - Separator with steel rotating drum
Separator with made holes in steel rotating drum.

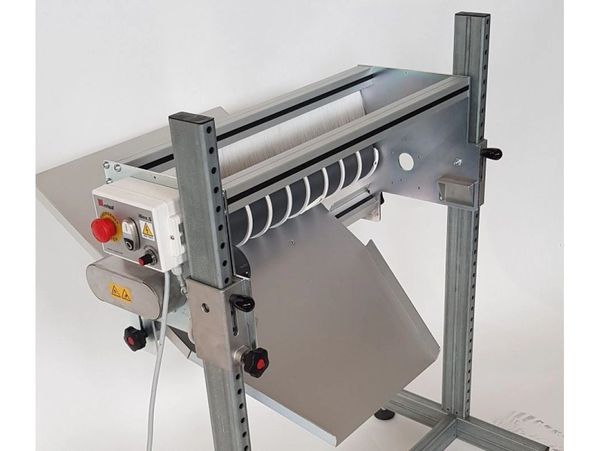

S46xx - Rollers separator
2/4 rollers separatos with millimetrical separation gap adjustment.
S4700 - Spiral separator

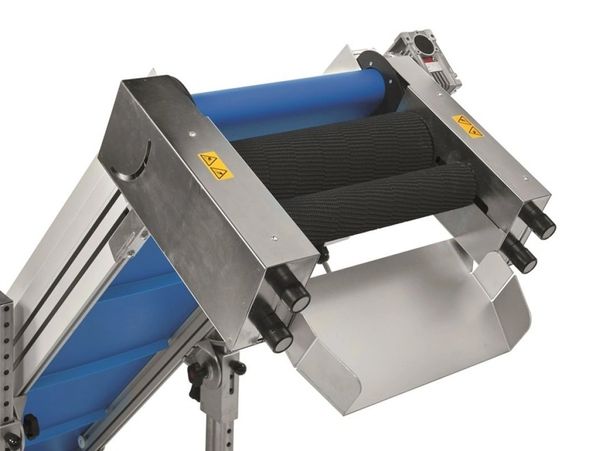

S4810 - End of conveyor rollers separator
